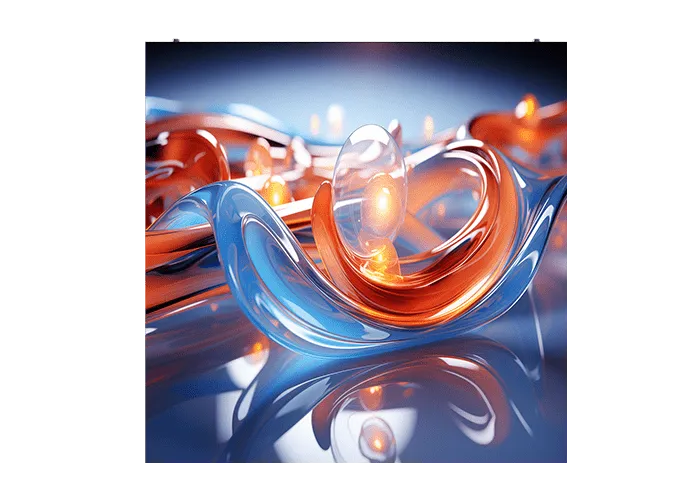

Uslim-O

Commercial Fine Pitch, Quality Within Reach
• Fully front and rear maintenance
• IP60 protection, Die-casting cabinet
• 1000*1000 and 500*500 mix and match
• Support stacking, wall-mounting and hanging
• Right angle and round corner solutions available

Application Scenario

Shopping Mall

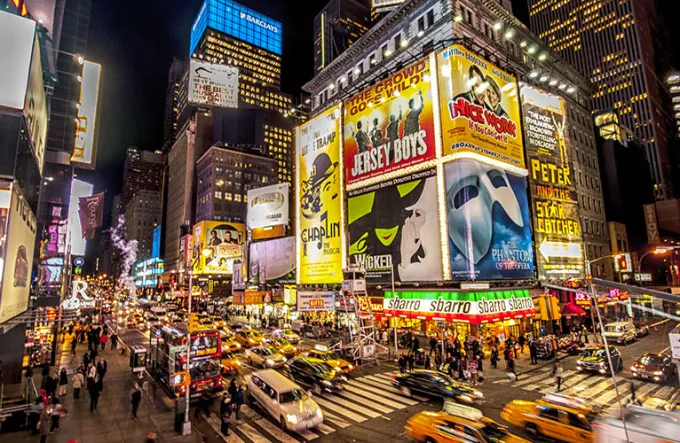

Outdoor Billboard

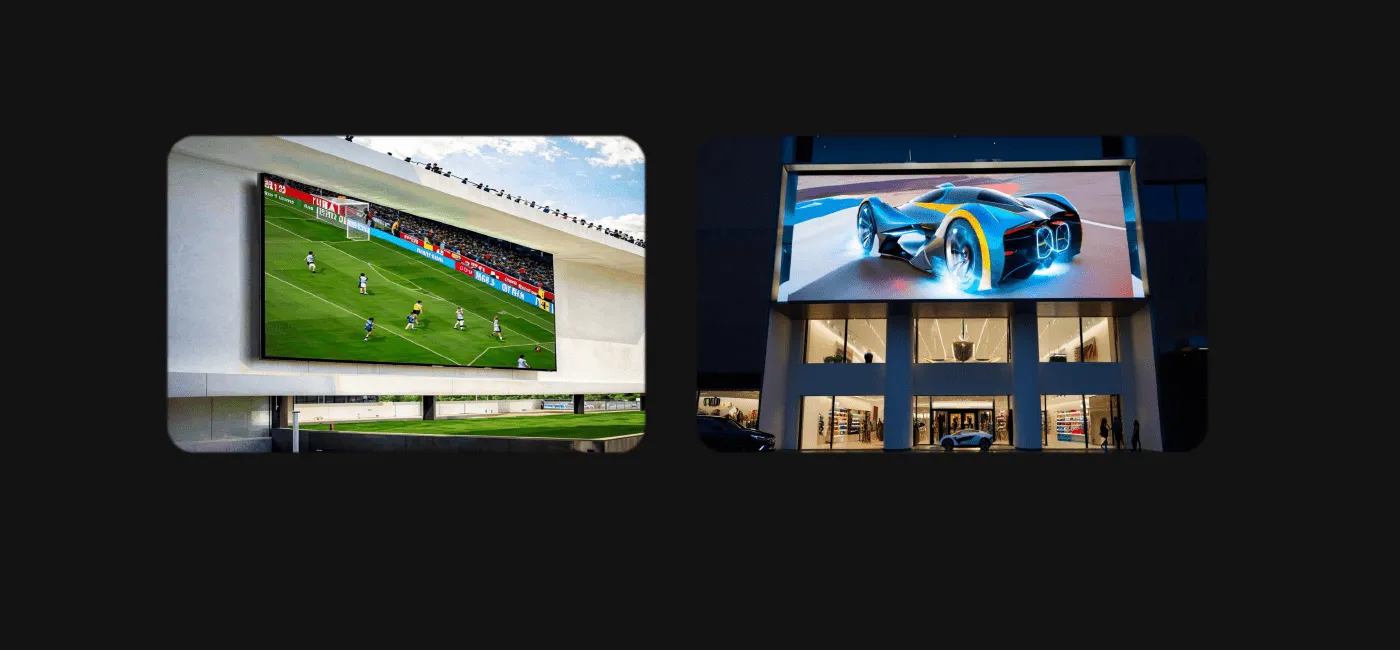

High Brightness 5500-6500nits

Enhanced visual impact and improved advertising effectiveness
High-brightness images can quickly catch the eye.
Combined with high contrast and color saturation, they make the advertisement content more appealing, enhancing brand exposure and conversion rates.
Umate LM O comes with 5500nits as standard, and the brightness is increased by 30% compared to regular products

Versatile

Redefine the visual possibilities of outdoor Spaces
Full-scene coverage
Shopping mall, exhibition halls, bus stops,
squares, event venues, store entrances,
exterior walls of buildings, and other places

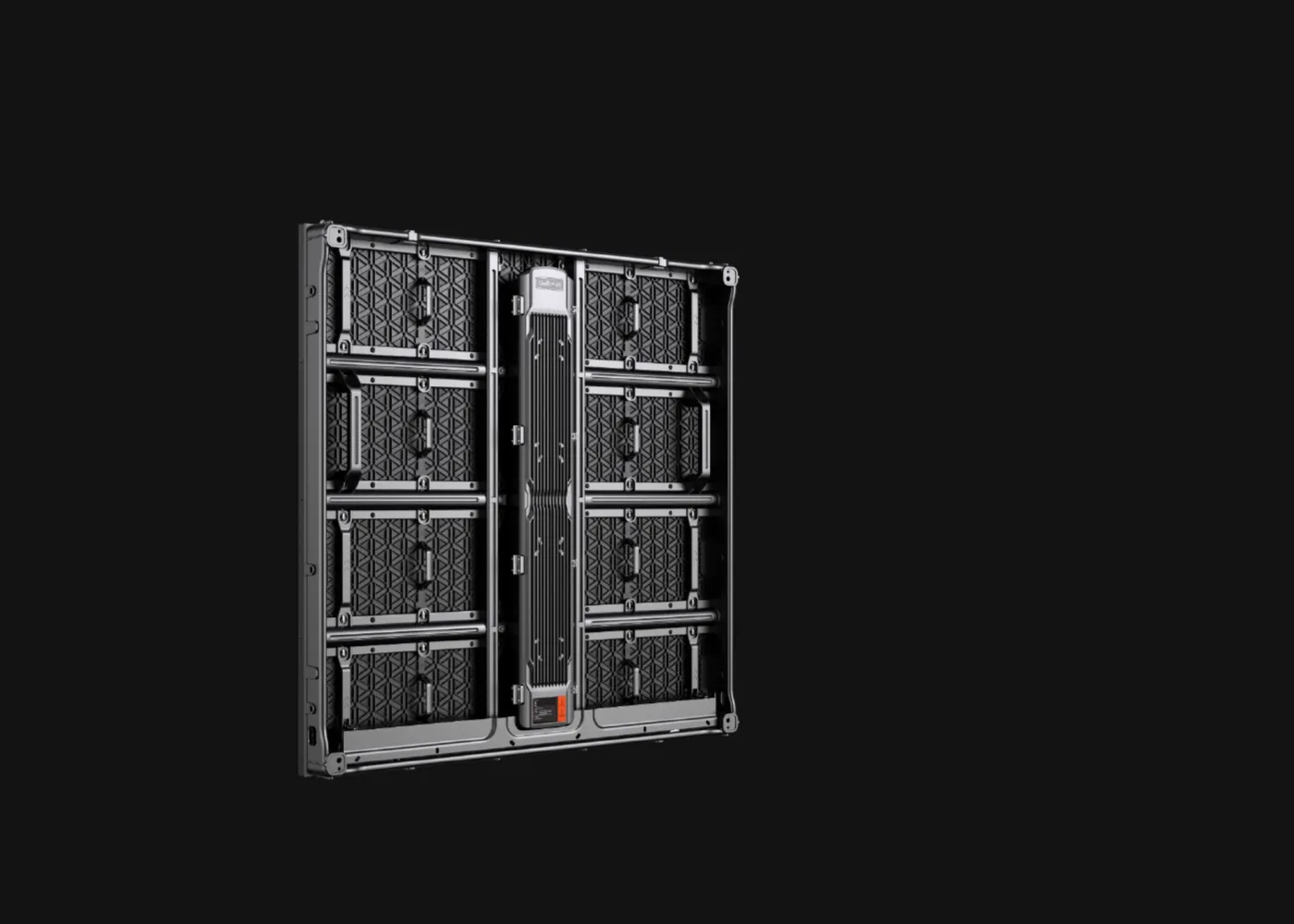

Lightweight design

Weight 22.3kg/㎡ 25% lighter than conventional die-casting cabinets • Lightweight + die-casting cabinet: achieving "light yet strong and tough". • Reduce structural pressure: During long-term use, lightweight reduces the aging and wear of the support frame, thereby extending the overall lifespan.

Tough as Nature

IP65 Protection Seamless design that withstands any weather and environment

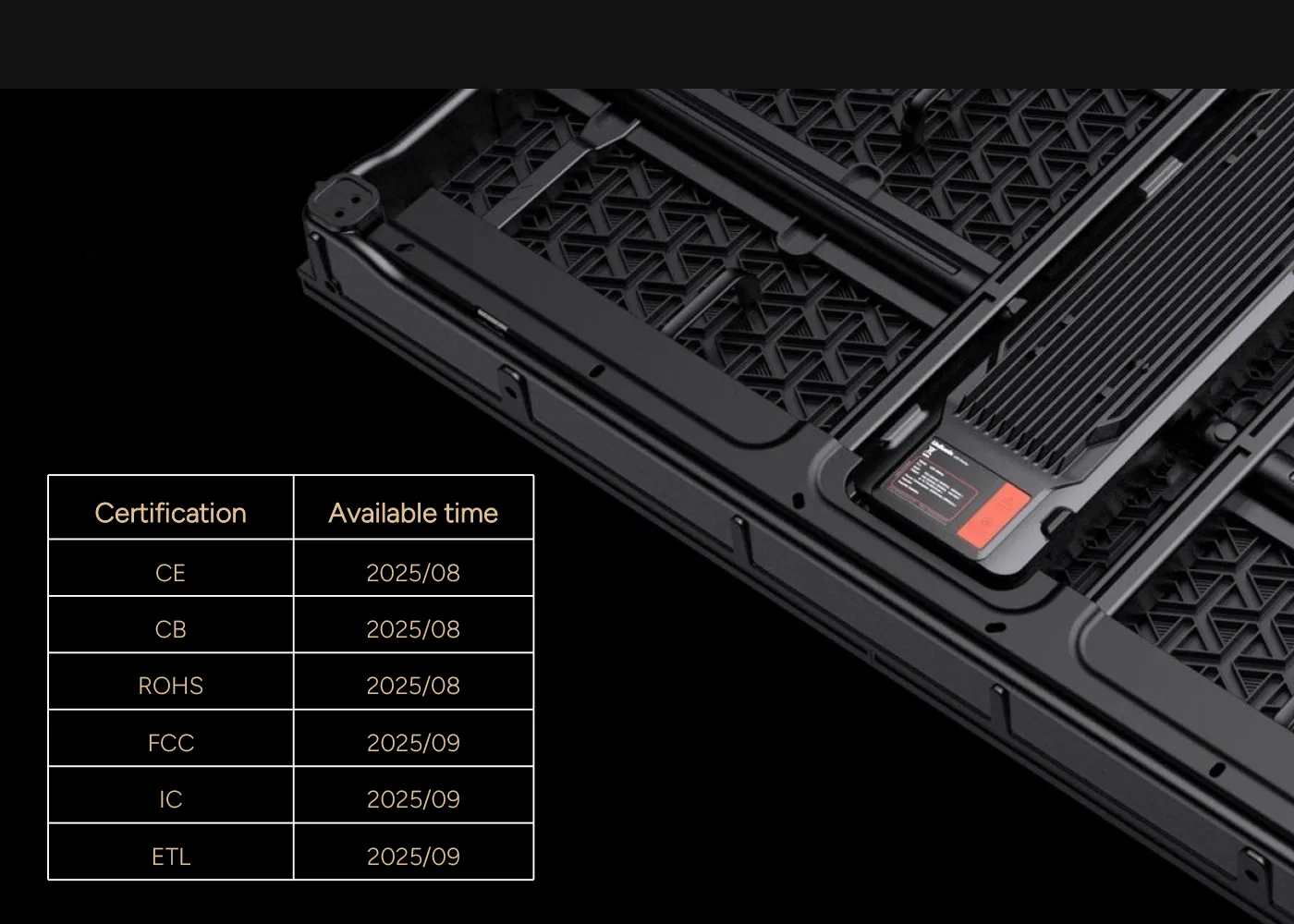

Certification

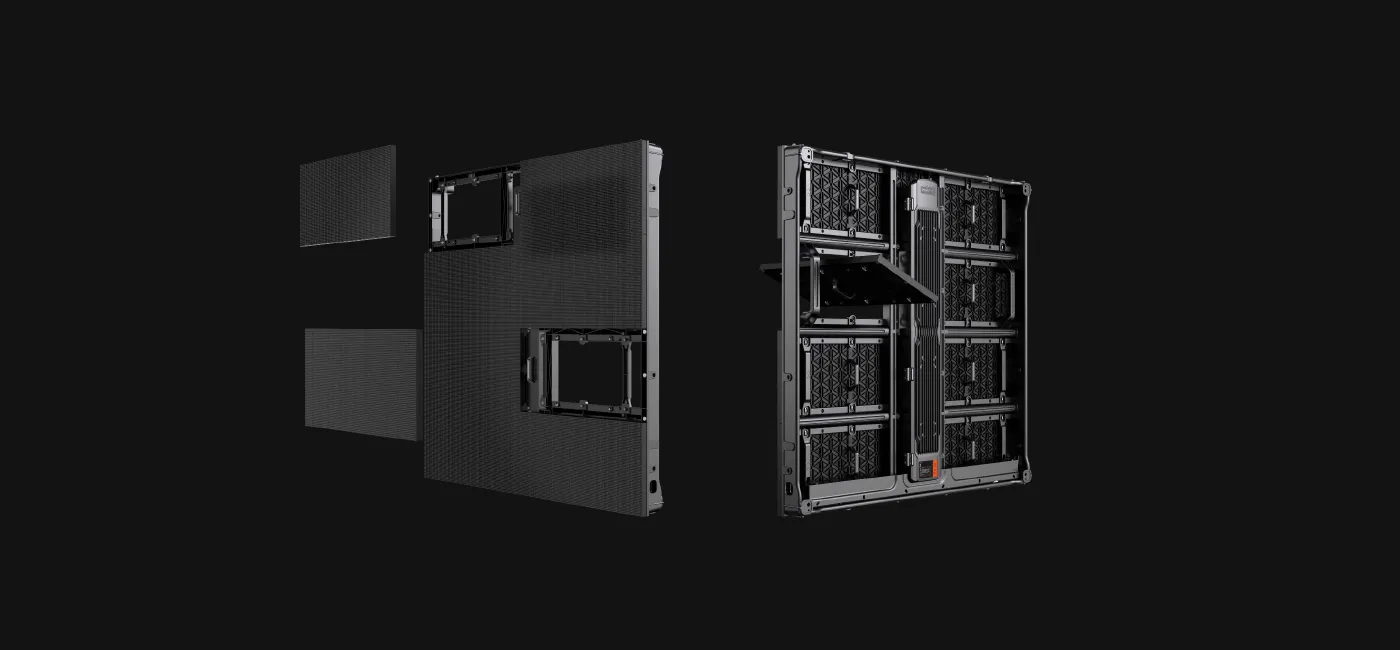

Front & Rear Maintenance

Multiple Installation
Hanging
Stacking
Wall mounting

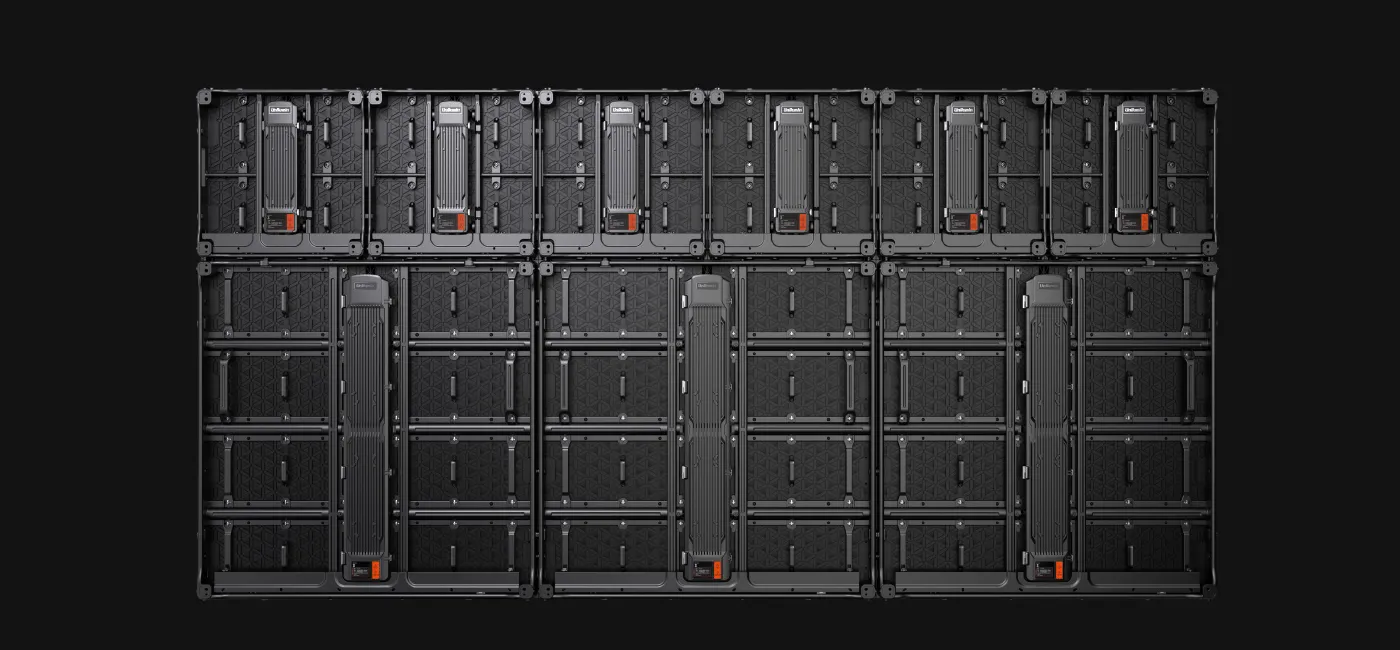

Mix and Match

Size: 500*500mm
Pixel Pitch: P1.9/2.5/2.9/3.9
Size: 1000*1000mm
Pixel Pitch: P2.9/3.9
For P2.9/3.9, big and small cabinets can be spliced together perfectly.

Stunning Display Effect

5500-6500nits brightness
14-16bit gray scale
≥3840Hz refresh rate
5000:1 High contrast

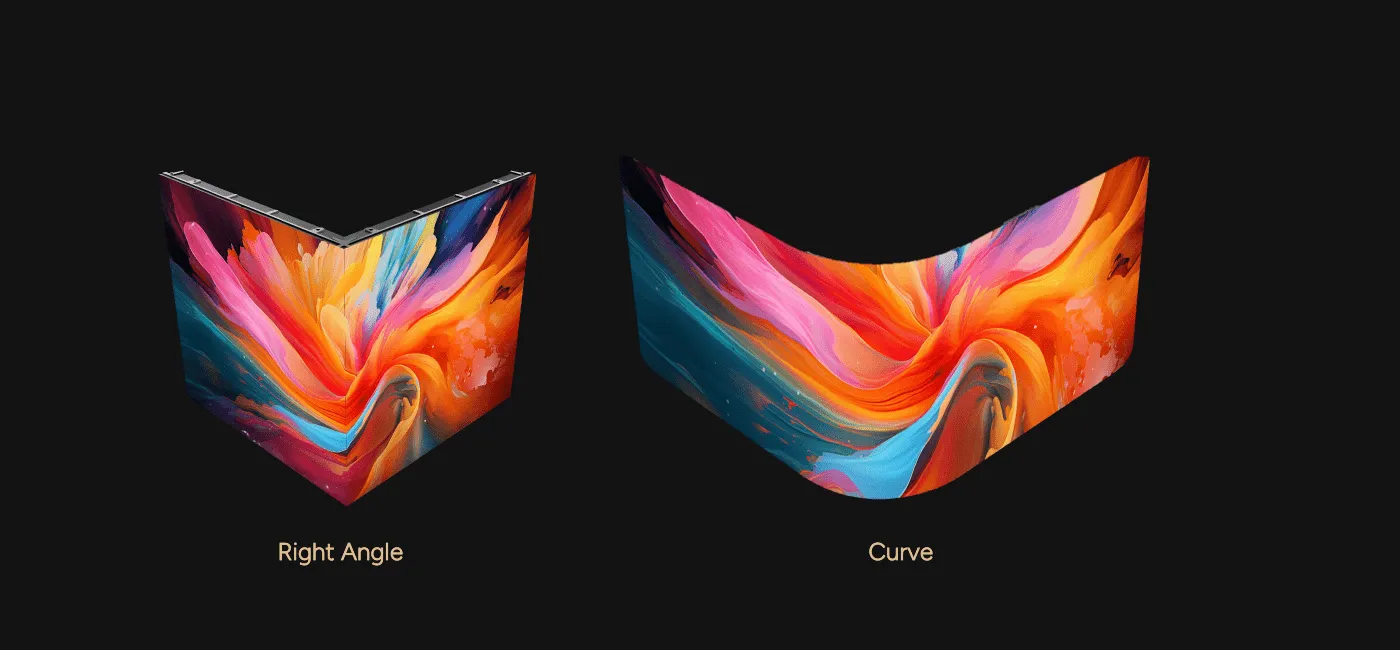

Creative Splicing to Satisfy Project Requirement

Customized cabinets are optional

Product Parameter

Series	Uslim-O
Pixel pitch	1.9	2.5	2.9		3.9
Cabinet size	500*500mm		10001000mm/500500mm
Module size	250*250mm		500250mm/250250mm
Weight	22.3kg/㎡
Brightness	500-6500nits
Refresh rate	≥3840Hz
Contrast	5000:01:00
Ingress protection	IP60 Front & Rear
Maintenance	Front & Rear
Power Consumption(Max)	Pending	780W/㎡	760W/㎡	670W/㎡
Certification	CE、CB、ROHS2.0、FCC、IC、ETL

Related Downloads

Related Product

USK

UsurfaceIV

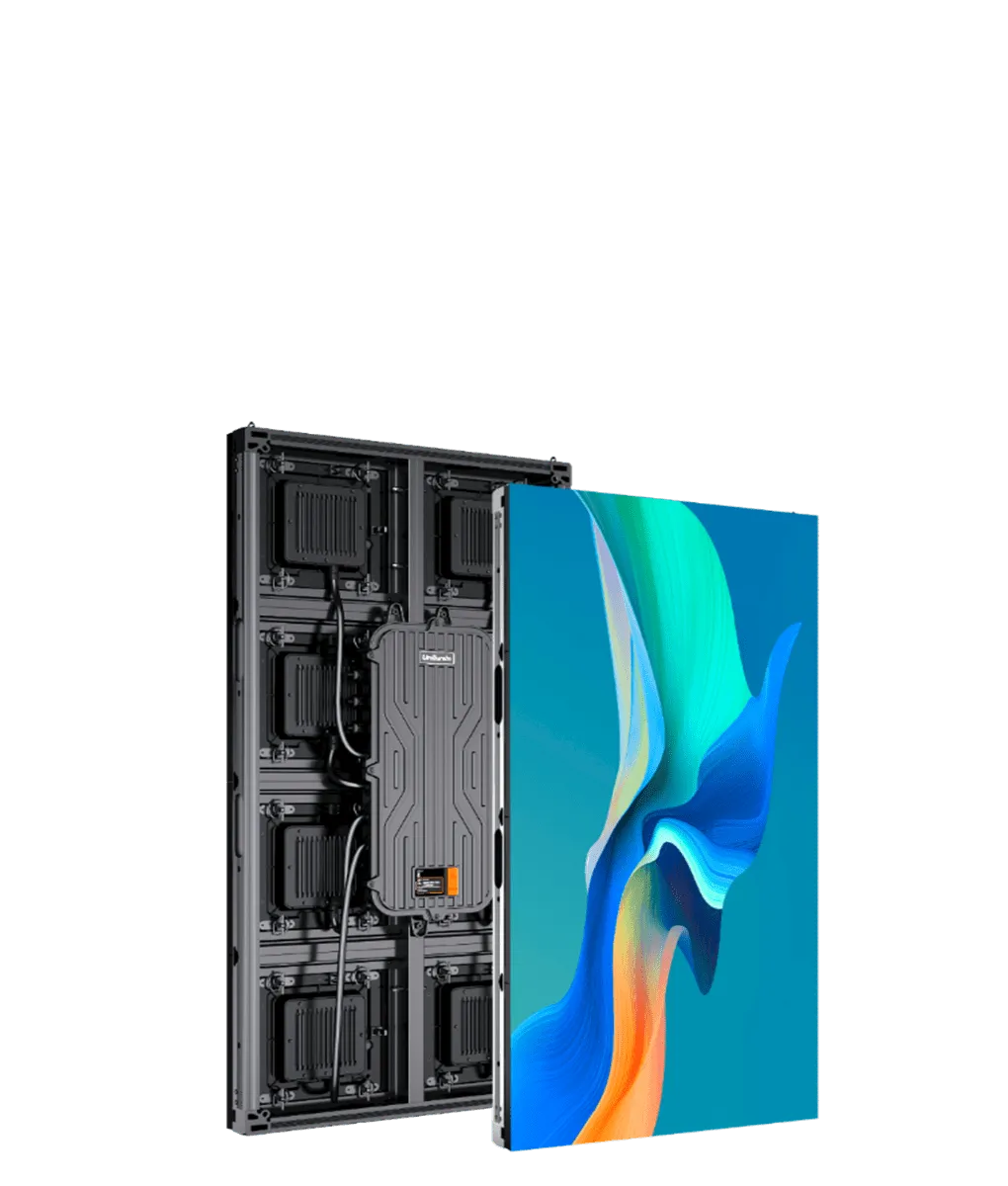

Usign
